1. GENERAL
|
Customer |
- |
Item No.(ID No.) |
- |
|
Location |
- |
Model No |
400JPS75 T |
|
Service |
- |
Quantity |
set |
2. DESIGN DATA
|
MOTOR |
PUMP |
|
Power Supply |
3ะค 380 V 50 Hz |
Discharge Dia |
400 mm |
|
Rated Power |
100 HP 75 KW 6 P |
Total Head |
15 m |
|
Rated Current |
156 A |
Capacity |
20 m3/min |
|
Type |
Squirrel |
USGL/min |
|
Insulation Class |
F |
Revolution |
950 RPM |
|
Starting Method |
Star-Delta |
|

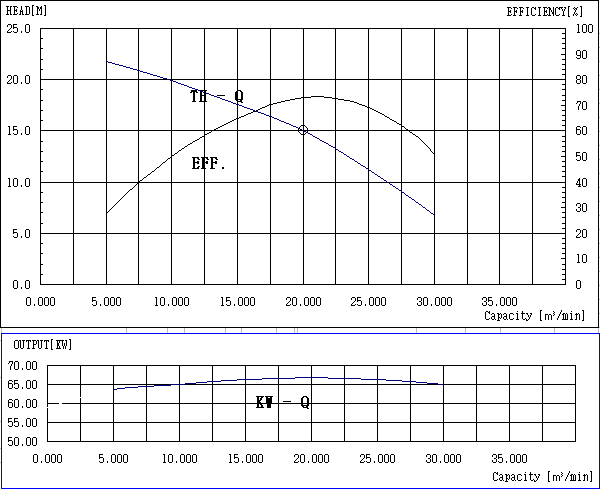

Curve No. |
|
Solid Dia. |
mm |
3. REMARKS
|
